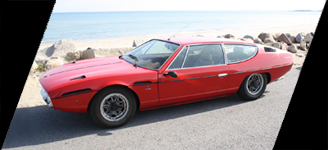

ESPADA "SERIES I"



TECHNICAL SPECIFICATIONS



IMAGES



PRODUCTION
PERFORMANCE
ENGINE
MEASUREMENTS
STRUCTURE
TRANSMISSION


PRODUCTION

First introduced:
Produced:
Cars built:
1968
1968-1969
176



PERFORMANCE

Top Speed:
0-100 km/h.:
1/4 mile:
Standing km.:
245 km/h.
6,5 sec.
15,0 sec.
26,0 sec.





ENGINE

Placement:
Type:
Valves/cylinder:
Bore/Stroke:
Capacity:
Max. power:
Max. torque:
Compression:
Longitudal, front-mounted
V12 60° Aluminium
2
82mm x 62mm
3929 cc
325 bhp @ 6500 rpm
375 Nm @ 4500 rpm
9,5:1



MEASUREMENTS

Overall Length:
Overall Width:
Overall Height:
Wheelbase:
Front Track:
RearTrack:
Weight:
Fuel Tank:
4738 mm
1860 mm
1185 mm
2650 mm
1490 mm
1490 mm
1480 kg
93 L





STRUCTURE

Body:
Frame:
Brakes:
Rims front/rear:
Tires front:
Tires rear:
Steel + Aluminium
Sheet Steel
Ventilated discs
7" x 15" - 7" x 15"
205 VR 15 Pirelli Cinturato
205 VR 15 Pirelli Cinturato

TRANSMISSION

Gearbox:
Clutch:
1st gear:
2nd gear:
3rd gear:
4th gear:
5th gear:
6th gear:
7th gear:
Reverse:
Final drive ratio:
5-speed + reverse, all-syncromesh
Single dry plate, hydraulically operated.
2,520:1
1,735:1
1,225:1
1,000:1
0,815:1
-
2,765:1
4,09:1
