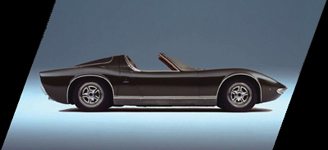

MIURA ZN75

Untitled Document




PRODUCTION




Click image to see more images

First introduced:
Produced:
Cars built:
1969
1969
1





PERFORMANCE

Top Speed:
0-100 km/h.:
1/4 mile:
Standing km.:
270 km/h.
6,6 sec.
14,6 sec.
24,8 sec.


ENGINE

Placement:
Type:
Valves/cylinder:
Bore/Stroke:
Capacity:
Max. power:
Max. torque:
Compression:
Transverse, mid-mounted
V12 60° Aluminium
2
82mm x 62mm
3929 cc
350 bhp @ 7000 rpm
369 Nm @ 5100 rpm
9,5:1

MEASUREMENTS

Overall Length:
Overall Width:
Overall Height:
Wheelbase:
Front Track:
RearTrack:
Weight:
Fuel Tank:
4370 mm
1760 mm
1050 mm
2500 mm
1400 mm
1400 mm
1000 kg
90 L




STRUCTURE

Body:
Frame:
Brakes:
Rims front/rear:
Tires front:
Tires rear:
Steel & Aluminium
Sheet Steel
Ventilated discs
7" x 15" - 7" x 15"
205GR70VR-15 Pirelli Cinturato
HS 205GR70VR-15 Pirelli Cinturato

TRANSMISSION

Gearbox:
Clutch:
1st gear:
2nd gear:
3rd gear:
4th gear:
5th gear:
6th gear:
5-speed + reverse, all-syncromesh
Single dry plate, hydraulically operated.
2,520:1
1,735:1
1,225:1
1,000:1
0,815:1
-
